Sievers InnovOx ES Laboratory TOC Analyzer

Robust sample handling capabilities designed for challenging applications

Sievers InnovOx ES Laboratory Total Organic Carbon (TOC) Analyzers offer a dynamic operating range of 50 ppb to 50,000 ppm. Its patented Supercritical Water Oxidation technique allows for superior TOC recovery and accuracy. The Sievers InnovOx ES Lab offers a variety of measurement modes including TOC and Non-Purgeable Organic Carbon (NPOC). The InnovOx ES Lab provides versatile analysis options such as multiple runs on the same sample, auto calibration range selection, and integration with the Sievers Autosampler.

Download Brochure Here

Learn more about the robust Sievers InnovOx ES Lab

The analyzers are compliant with US EPA Method 415.1, US EPA Method 415.3, US EPA Method 9060A, CEN Method DIN EN 1484, ISO 8245, and ASTM D5173.

Features and Benefits
Specifications
Accessories

Features and Benefits

InnovOx ES Lab Features and Benefits

Robust sample handling

Wide dynamic range up to 50,000 ppm TOC
Autosampler with stirring and rinse station options for high volume laboratory applications
Patented Supercritical Water Oxidation for superior TOC recovery and high reliability
Reliable NDIR detection technology with no moving parts
Straightforward operation
Versatile measurement modes include TOC (TC-IC) or NPOC
COD/BOD reporting
Handles tough TOC samples, like cellulose and brine

Applications

Biological wastewater plant optimization
Wastewater monitoring
High salt and brine monitoring
Industrial monitoring

Specifications

InnovOx ES Lab Specifications

Operating Specifications*
Analysis Modes	NPOC, TOC, (TC-IC), TC, IC
Range	0.05 to 50,000 ppm TOC
Precision	RSD ≤3% of reading at >5 ppm NPOC or TOC
Accuracy	Greater of ±3% or ±.25 ppm, 1 to 100 ppm, NPOC or TOC
Linearity	R2 ≥ 0.995, measured as NPOC
LOD	<50ppb
TOC Calibration Stability	Up to 6 months
Analysis Time	2.6 to 8.3 minutes
Particle Diameters in Sample	≤800 µm diameter
Sample Temperature	10-60 °C (41-140 °F)
Ambient Temperature Range	10 to 40 °C (50-104 °F)
Sampling	Ambient pressure, 0.08 to 2.82 mL sample volume per analysis
Analyzer Specifications
Sample Capacity	Up to 120 with optional Autosampler** (or single standard vial port)
Outputs	Ethernet Port (1); USB Ports (3)
Display	Color LCD w/touch-screen
Power	100 – 240 ± 10% VAC, 50 – 60 Hz, 400 VA
Installation/Overvoltage Category	II
Dimensions	H: 52.05 cm (20.5 in.); W: 32.26 cm (12.7 in.); D:58.42 cm (23.0 in)
Dimensions (Autosampler)	H: 52.2 cm (20.5 in.); W: 31.1 cm (12.25 in.); D: 53.3 cm (21.0 in.)
Weight	22.41 kg (49.4 lb); 14.1 kg (31.1 lb) for optional Autosampler
Safety Certifications	CE, ETL listed. Conforms to UL Std. 61010-1. Certified to CSA C22.2 NO. 61010-1
Environment
Maximum Relative Humidity	Up to 95%, non-condensing
Normal Operating	Indoor use only. Keep instrument and reagents out of direct sunlight.
Maximum Altitude	3,000 m (9,800 ft)
Pollution Degree	2

* Stated analytical performance is achievable under controlled laboratory conditions that minimize operator and standards errors.

** Up to 63 sample tubes for 40mL and 60mL vials. Up to 120 sample tubes for 35mL vials.

*** NPOC mode, bottled N2 as carrier gas. This performance is achieved under controlled conditions where variables that influence low-level performance have been minimized or eliminated. This performance may not be achievable on instruments delivered before August 2016

Accessories

InnovOx Lab Options and Accessories

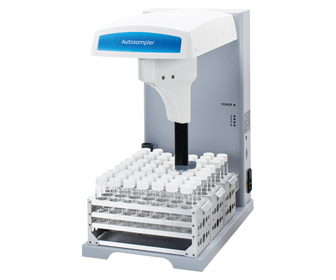

Autosampler: for high-volume laboratory applications
Air filter: used to purify ambient air and pressurize it sufficiently for use as a sparge and carrier gas
