SP clarifier

High-rate, solids contact clarifier

The SP clarifier combines the principles of a sludge blanket and solids contact system into a single, high-rate, clarification unit. Capable of removing turbidity, color, TOC and other constituents in both municipal and industrial water applications.

Overview
Features & Applications

Overview

SP Clarifier Technology

The SP Clarifier combines basic chemical principles and proven clarification technology in a high-rate, solids contact clarifier that offers maximum efficiency. The unique design combines flocculation and clarification functions in one basin for optimal use of space. Vacuum generated flow pulsations create a homogeneous sludge blanket that results in excellent effluent quality at minimal operating costs.

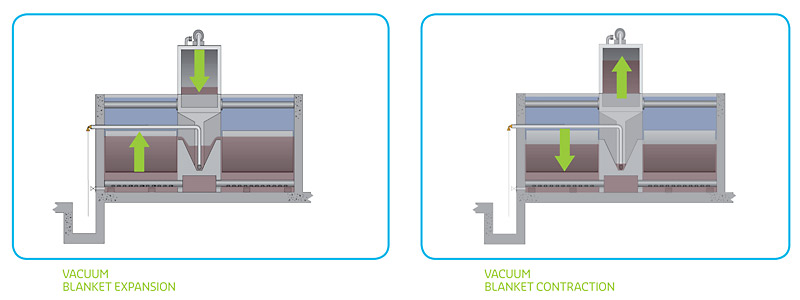

Superpulsator Technology

Performance Advantages

Clarified turbidity of < 1-2 NTU
Ability to handle high raw solids (0 to 2000+ NTU)
Up to 60% TOC removal
Low energy requirement (1 HP per MGD)
No submerged moving parts
Integrated flocculation/clarification in one unit
Ability to add settling tubes for increased capacity
Hundreds of installations in the Pulsator family

Features & Applications

SP clarifier Features & Applications

Main Features

No submerged moving parts
Optimal flocculation and chemical usage
Corrosion resistant materials
Low energy requirement
Minimal operator attention
High-Rate, compact system

Technical Features

Flexible layout options
Customize to any site plan
Loading Rates: 2.0 to 4.0 gpm/ft2
Polymer free at reduced loading rates
Settling plate widths up to 20 feet
Unit height 16 to 18 feet
Retrofit existing sedimentation basins
Retrofit circular clarifier basins
Common-wall layout with our Greenleaf* Filter

Applications

Surface water clarification
Membrane pretreatment
TOC & color removal
Conventional basin retrofit
