Membrel* Electrolytic Ozone Generator

State-of-the-art electrolytic ozone generators

The Membrel Electrolytic Ozone Generators, a brand of Ozonia*, are the most effective way to disinfect ultrapure water systems in industrial and pharmaceutical applications. The Membrel MkV Electrolytic ozone generator produces ozone using a unique method from water instead of gaseous air or oxygen.

The Membrel Electrolytic Ozone Generators continuously secure water and product quality for pure water, ultrapure water (UPW), and process water applications. Electrolytic ozone technology is used in pharmaceuticals, cosmetics, semiconductors, microelectronics, and personal care products markets

Download Membrel* Electrolytic Ozone Generator Brochure

Overview

The Membrel MkV uses unique Veolia technology that produces ozone from water instead of gaseous air or oxygen. Adding Membrel Electrolytic ozone generators to an ultrapure water loop improves end-product quality and the overall water system’s performance. Membrel Electrolytic ozone generator is unique because it provides continuous disinfection protection compared to other technologies where microbial activity increases over time. They are also the safest way to disinfect because it eliminates any potentially harmful contamination from outside sources since ozone is produced from the ultrapure water itself. Ozone technology has many advantages over traditional disinfection technologies. While those benefits still apply, electrolytic ozone systems have other benefits applicable to pure water systems:

Features & Benefits

  • Ozone production from 3 g O3/h to 9 g O3/h
  • Integrated flow control for simple installation
  • Easily upgradable by adding ozone production cells
  • Easily integrated with small footprint and remote capabilities
  • No separate source of oxygen required
  • Recognized by all major pharmaceutical standards and complies with FDA, EN, IEC, ISO, CE guidelines

Minimize costs

  • Minimal equipment is required because ozone is dissolved immediately in process water
  • Robust – industry-proven – technology with low lifecycle costs
  • Very low energy consumption compared to alternatives

Safe from contamination

  • No ionic contamination is introduced to the process water
  • Ozone is generated from the pure water already in the system
  • Ozone decays into harmless oxygen leaving no residuals

Increase production up-time

  • Continuous production reducing sanitization cycle frequency
  • No productions stops are required to protect against microorganisms
  • Continuous ozonation ensures water quality protection at all times

Application

The Membrel Electrolytic ozone generators are used for Ultra-Pure Water (UPW) disinfection applications in industries where water quality is critical to end product quality. Membrel Electrolytic ozone generators are optimized for ultrapure water loops where water is produced, stored and distributed in a closed-loop and used in at multiple points-of-use (POUs) for integration into products.

Membrel Electrolytic ozone generators have been the market leader for decades in several industries:

  • Pharmaceuticals
  • Personal Care Products
  • Cosmetics
  • Microelectronics

How It Works

The two primary ways of producing ozone for water treatment are through corona discharge or electrolytically. Veolia’s Membrel Electrolytic Ozone Generator uses an electrolytic process to produce ozone from water, making it the most effective method for ozone production in ultrapure water applications, where water purity is critical.

The Membrel MkV is the latest generation of Ozonia electrolytic ozone generators that uses proprietary Membrel modular cell technology and state-of-the-art electronics. The Membrel electrolytic ozone generator utilizes a fundamentally different ozone generation process, using purified water as an oxygen source instead of a gas such as air or oxygen.

The Membrel Cell, which functions as both electrolyte and separator between the anode and cathode, is contacted on both sides by activated porous electrodes. The water fed to the anode side of the cell is dissociated at the interface between the anode and cell as a result of the current being applied. The dissociated oxygen is then utilized for ozone generation, all within the Membrel Cell.

Transitioning from production to sanitization is as easy as flipping a switch

  • Simply turn the Ultraviolet (UV) - based ozone destructors off and allow ozone to sanitize the entire pure water loop
  • In production mode, UV-based ozone destructors are turned ON to stop ozone from going to Points of Use (POUs)
  • In sanitization mode, simply turn the UV-based ozone destructors off to allow ozone to sanitize the entire pure water loop

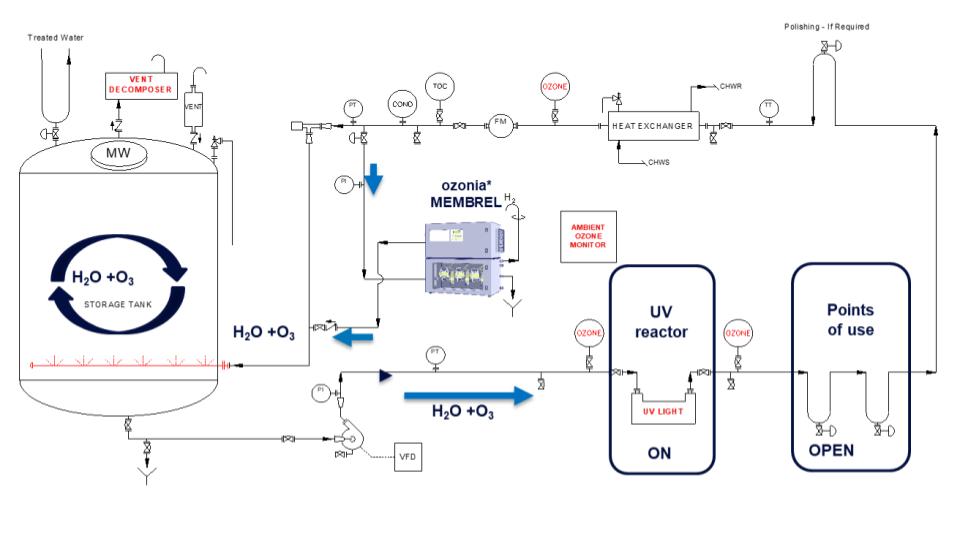

Operation Mode

Figure 1 - Operation Mode

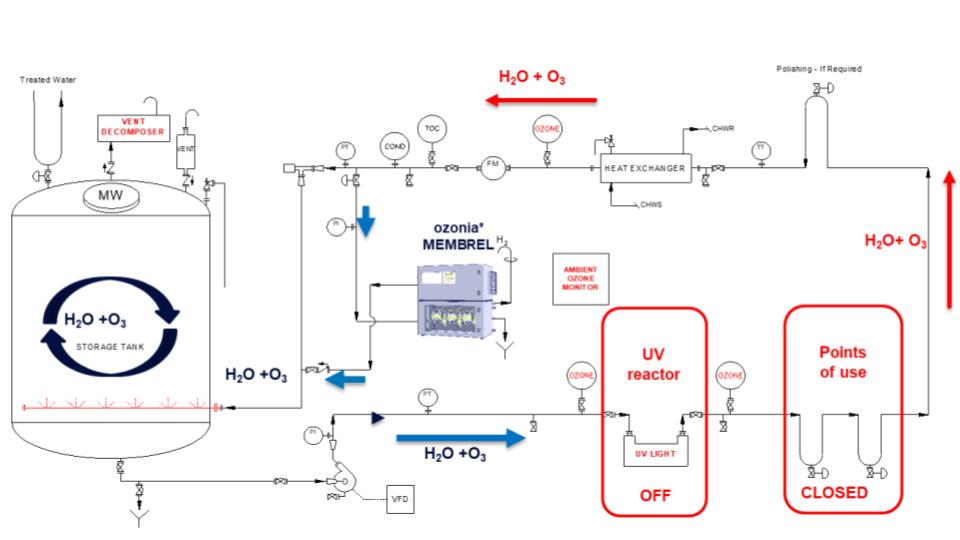

Cleaning Mode

Figure 2 - Cleaning Mode

Find out more about how the Ozonia Membrel Electrolytic ozone generator works in our animation below:

Case Studies

Limit ultrapure water system costs and downtime using Ozonia ozone technology

Download Case Study - Ozone in ultrapure water loops

Ozonia ozone system reduces micropollutants to meet discharge limits at Altenrhein wastewater plant

Download Case Study - Reduce micropollutants with Ozonia ozone systems

Advanced Micropollutant Removal at ARA Morgental Wastewater Treatment Plant

Download Case Study - Advanced micropollutant removal with Ozonia ozone systems

Resources

The Membrel Electrolytic ozone generators are used for Ultra-Pure Water (UPW) disinfection applications in industries where water quality is critical to end product quality. Membrel Electrolytic ozone generators are optimized for ultrapure water loops where water is produced, stored and distributed in a closed-loop and used in at multiple points-of-use (POUs) for integration into products.

Membrel Electrolytic ozone generators have been the market leader for decades in several industries:

  • Pharmaceuticals
  • Personal Care Products
  • Cosmetics
  • Microelectronics

Ozone System Design

Most modem pure water networks are constructed as closed loop systems where the water is pumped through one or more circulation loops to different point-of-use (POU) points. Depending on the source water and final application, there are different pieces of equipment (such as filters, reverse osmosis membranes, UV systems, tanks, pumps) installed. The Membrel unit is an essential part of this large-scale fixed installation (LSFI). For all applications, it is best to install the ozone generation system in the loop and return just before it re-enters the storage tank. The by-pass flow for the electrolytic system is tapped off before the loop’s pressure retaining valve and reintroduced on the low pressure side

Download Ozone Ultra-Pure Water (UPW) Infographic
