Veolia Water Technologies & Solutions

Capsule Filters

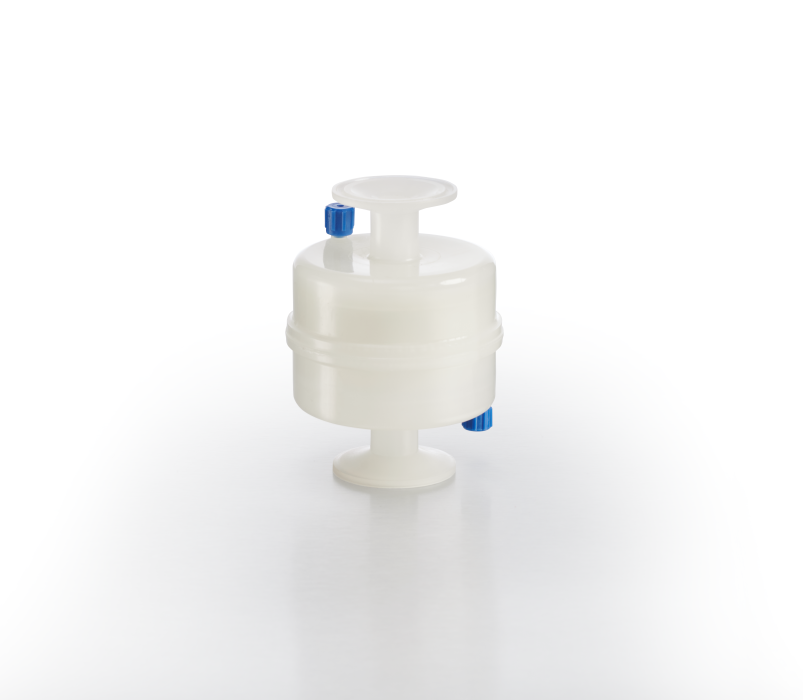

Veolia capsule filters are completely disposable, individually packed filtration systems with Veolia’s Flotrex and Memtrex filtration media. Ideal for testing applications of pleated filter media and small batch operations. Please note capsule filters are available in minimum order quantities.

Overview

overview

Flotrex AP (CFAP)

Flotrex AP (all polypropylene) capsule filters (CFAP) combine the purity and reliability of all- polypropylene construction into a cost-effective filter that exhibits exceptional particle retention and service life. With their range of micron ratings and broad chemical compatibility, Flotrex AP capsule filters are appropriate for a wide range of applications.

  • 100% polypropylene construction
  • Thermally bonded gradient density polypropylene microfiber media
  • Wide range of absolute micron ratings from 0.65 to 40 microns
  • Broad chemical compatibility
  • Suitable for both gas and liquid filtration
  • Consistent, precise particle retention combined with high loading capacity
  • Economical alternative to membrane filters in selected applications
  • Ideal for batch or small volume processes
  • Sterilized by autoclave or sanitized with a variety of commonly used chemical agents
  • Made in the USA

Compliance

  • For further details please see the product factsheet and/or product declaration.



Flotrex GF (CFGF)

Flotrex GF (glass microfiber) capsule filters (CFGF) are constructed with durable acrylic resin-bonded glass microfiber media for superior performance in applications with excessive particle burden. Flotrex GF capsule filters provide excellent protection for final filters and perform as exceptional final filters in applications that do not require membrane filtration.

  • Acrylic resin-bonded glass microfiber media
  • Reliable particle retention
  • Excellent service life in applications with severe particle loads
  • Polypropylene component structure for enhanced chemical resistance
  • Excellent protection for final membrane filters
  • Ideal for batch or small volume processes
  • Sterilized by autoclave or steam; Sanitized with compatible chemical agents
  • Made in the USA

Compliance

  • For further details please see the product factsheet and/or product declaration.



Memtrex FE (CMFE)

Memtrex FE (polytetrafluoroethylene) capsule filters (CMFE) consistently achieve absolute filtration with low extractables. Constructed using a 100% PTFE membrane, they are especially designed for reliable general chemical and air filtration.

  • Ideal for aggressive chemicals, air and process gas filtration and vent uses
  • Highly hydrophobic membranes with low extractables
  • Individually integrity tested during manufacturing
  • Sterilized by autoclave or steam; Sanitized with compatible chemical agents
  • Made in the USA

Compliance

  • For further details please see the product factsheet and/or product declaration.



Memtrex MP (CMMP)

Memtrex MP (polyethersulfone) capsule filters (CMMP) offer unique polyethersulfone (PES) membranes that exhibit both high throughputs and precise retention characteristics for superior performance in most applications. Additionally, CMMP filters are resistant to a wide range of chemicals and pH extremes. These DI filters are water rinsed and are the filtration solution to a wide variety of applications in the beverage, pharmaceutical, and electronics industries.

  • Hydrophilic
  • High throughput and precise retention characteristics
  • Broad chemical compatibility — ideal for filtration of acids, bases, and solvents
  • Individually integrity tested during manufacturing
  • Rinsed with DI water during manufacturing for improved cleanliness and rinse-up times
  • Low protein binding membrane suitable for biopharmaceutical processes
  • Sterilized by autoclave; Sanitized with a variety of commonly used chemical agents
  • Made in the USA

Compliance

  • For further details please see the product factsheet and/or product declaration.



Memtrex NY (CMNY)

Memtrex NY (nylon) capsule filters (CMNY) have a unique polyester and polypropylene construction for enhanced reliability and usefulness. Polyester housings and support layers ensure and maintain capsule integrity, while a nylon 66 prefilter membrane layer over a final membrane layer significantly enhances filter life. CMNY filters are suitable for a wide range of applications, meeting worldwide demand for functionality in chemical, beverage, and water processing.

  • Utilizes inherently hydrophilic, high-purity nylon 66 membrane
  • Innovative serial layer membrane design
  • Thermal weld techniques — no adhesives, resins or binders
  • Low extractables
  • 100% integrity tested and rinsed for uncompromised reliability and consistency
  • Sterilized by autoclave; Sanitized with a variety of commonly used chemical agents, although acidic solutions should be avoided
  • Made in the USA

Compliance

  • For further details please see the product factsheet and/or product declaration.



Applications

applications

Flotrex AP (CFAP)
  • Filtration of Fine Chemicals used in Electronics Manufacture
  • Filtration of Inks, Dyes, and Coatings
  • Pre-filtration of Pharmaceuticals, Biologicals and Cosmetics
  • Vent and Process Gas Filtration
  • Point-of-use Water Filtration
  • Filtration of Eyeglass Lens Monomers
      Flotrex GF (CFGF)
      • Pre-filtration for a wide variety of Pharmaceuticals including Serums, Tissue Culture media, and Protein Solutions
      • Pre- and final filtration of Cosmetics
      • Pre-filtration of Beverages
      • Final filtration of Beverages that do not require Membrane Filtration
      • Filtration of compatible Paints and Coating
      Memtrex FE (CMFE)
      • Acids, Base, and Oxidant Filtration
      • Bulk Chemical Filtration
      • Sterile Venting
      • Electronics Grade Chemical Filtration
      • Process Air and Gas Filtration
      Memtrex MP (CMMP)
      • Acids, Bases, and Oxidants
      • Serums and Tissue Culture Media
      • Pharmaceutical Intermediates
      • Fine Inks and Dyes
      • Point-of-Use for Process Water
      Memtrex NY (CMNY)
      • Beverages
      • Cosmetics
      • Electronics
      • Fine and Bulk Chemicals
      • Pharmaceuticals

      Chemical Compatibility

      chemical compatibility

      Veolia manufactures a series of melt-blown polypropylene depth filters as well as pleated filters made from a variety of microfiber and polymeric membrane materials. This wide array of cartridge media and elastomer materials ensure the right filter and configuration for your application. Veolia filter cartridges are designed and manufactured for their resistance to a wide range of chemical solutions.

      Download Veolia Chemical Compatibility Table

      How to Use the Chemical Compatibility Table:

      R = Resistant. No significant change was observed in flow rate or bubble point of the membrane following 48 hours exposure to the test fluid at 77°F (25°C).

      LR = Limited Resistance. Moderate changes in physical properties or dimensions of membrane were observed. Filter may be suitable for short term, noncritical use.

      NR = Not Resistant. The membrane is basically unstable. Extensive shrinkage or swelling of the membrane may occur. The filter may gradually weaken or partially dissolve after extended exposure.

      O = Insufficient Data. Testing on your own solution is recommended.

      chemical resistance

      Veolia polypropylene cartridge filters are made of pure polypropylene, an inert material that is compatible with a wide range of chemicals. No resins, binders, antistatic agents, or other materials are added during the manufacturing process. Veolia polypropylene cartridge filters are manufactured with a proprietary melt-blown microfiber technology. This unique process thermally welds microscopic fibers of polypropylene into a compact matrix that resists fiber sloughing and particle unloading into the filtrate, even under extreme mechanical and chemical actions. The manufacturing operation is precisely controlled to yield cartridge filters with consistent micron ratings and true graded density for high particle retention and long life.

      Download Veolia Chemical Resistance Guide

      How to Use the Chemical Resistance Guide:

      R = Recommended for use.

      NR = Not recommended for use.

      NA = No available test data. User should run test prior to use.

      Download Veolia Chemical Compatibility Table

      Download Veolia Chemical Resistance
