Z.Plex Depth Cartridge Filters

highest capacity cartridges

Z.Plex depth cartridge filters are manufactured using patented Z.Plex filter technology. Z.Plex’s proprietary graded density filter matrix provides exceptional performance with up to twice the life of conventional depth filters. The filters in the Z.Plex family have up to 50% lower pressure drop and up to 100% greater dirt-holding capacity. The melt-bonded exterior and core ensure no media migration, providing a lower total cost of filtration.

Download Z.Plex Technology Brochure

Overview

Filterplex.Z - General use

Muni.Z

Download Filterplex.Z Product Fact Sheet

Filterplex.Z depth cartridge filters are highly suitable for general applications. Veolia designed the Filterplex.Z as a superior filter to string-wound filter options.

  • Graded density media traps particles throughout the entire depth of the filter; Optimization of the filtration media for longer filter life
  • 100% polypropylene construction
  • Lower initial pressure drop than conventional depth filters
  • Filter composition contains no resin binders, lubricants, antistatic or release agents
  • Melt-bonded exterior ensures no fiber media migration
  • NSF Certified; FDA listed for food contact
  • Made in the USA

Compliance

  • US FDA 21 CFR compliant materials
  • Article 3 of the EU framework Regulation No. 1935/2004/EC Safety requirements
  • EU Plastics Regulation No. 10/2011 (may be used as intended in all compliant EU member states).
  • Meets USP Class VI-121 C plastics criteria.
  • NSF 61 certified
  • ISO 9001:2015 certified processes
  • For further details please see the product factsheet and/or product declaration.
ROSave.Z - Maximum life

RO Save

Download ROSave.Z Product Fact Sheet

ROSave.Z depth cartridge filters are engineered specifically for pretreatment for reverse osmosis systems to protect the more expensive membrane component. These filters are suitable for many pure water applications. The ROSave.Z filter matrix provides superior performance by trapping particles throughout the full filter media to extend time between change outs. ROSave.Z’s true depth media offers longer filter lifetime as well as very low pressure drop and flow resistance.

  • High dirt-holding capacity with Z.Plex melt-blown microfibers technology
  • Thermally bonded construction and melt-bonded end adaption
  • Contains no wetting agents, solvents, anti-static agents, or binders
  • Single pure material – 100% polypropylene     
  • Designed coreless and self-supporting  
  • High fluid and chemical compatibility  
  • Easy disposal
  • Made in the USA

Compliance

  • US FDA 21 CFR compliant materials
  • Article 3 of the EU framework Regulation No. 1935/2004/EC Safety requirements
  • EU Plastics Regulation No. 10/2011 (may be used as intended in all compliant EU member states).
  • Meets USP Class VI-121 C plastics criteria.
  • NSF 61 certified and NSF 42 certified
  • ISO 9001:2015 certified processes
  • For further details please see the product factsheet and/or product declaration.
WellPro.Z - Strength

WellPro Z

Download WellPro.Z Product Fact Sheet

WellPro.Z depth cartridge filters are engineered for deep-well strata protection, produced water disposal, and related oil and gas filtration. The WellPro.Z filter delivers outstanding dirt-holding capacity. Manufactured using Z.Plex technology and application-specific engineering, WellPro.Z filters have much greater void volume and up to twice the dirt-holding capacity of conventional filters.

  • Engineered specifically for well water injection, produced water disposal, and other oil and gas applications
  • Excellent temperature and oil resistance
  • Superior protection of equipment components
  • Optimized exterior decreases premature loading
  • Provides lower total cost of filtration operations
  • Made in the USA

Compliance

  • US FDA 21 CFR compliant materials
  • Article 3 of the EU framework Regulation No. 1935/2004/EC Safety requirements
  • EU Plastics Regulation No. 10/2011 (may be used as intended in all compliant EU member states).
  • Meets USP Class VI-121 C plastics criteria.
  • NSF 61 certified
  • ISO 9001:2015 certified processes
  • For further details please see the product factsheet and/or product declaration.

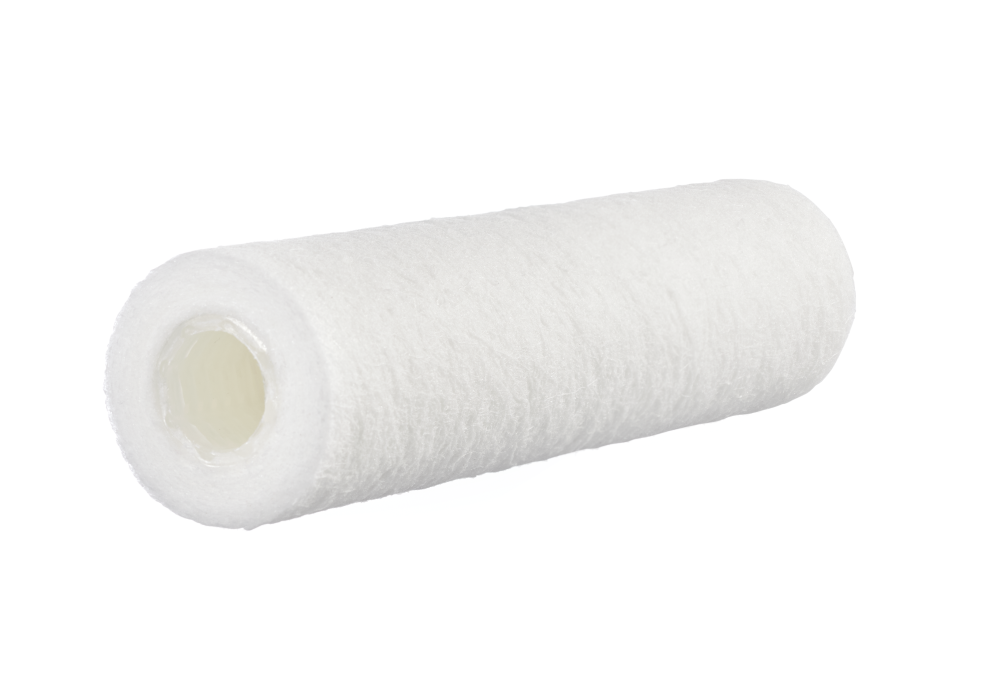

Z.Core - Advanced processing

ZCore

Download ZCore Product Fact Sheet

ZCore cartridge filters extend pressure and temperature limits to handle higher temperatures and pressure drops found in oil and hydrocarbon applications. Additionally, ZCore's filter high removal-efficiency can improve protection of equipment and downstream formations.

  • Engineered specifically for high temperature filtration up to 180° F and 82° C
  • Robust construction maintains structural integrity while significantly increasing dirt-holding capacity
  • Polypropylene core greatly enhances strength and temperature resistance and minimizes filter deformation
  • Melt-bonded exterior ensures no media migration and prevents premature surface blinding
  • Made in the USA

Compliance

  • US FDA 21 CFR compliant materials
  • Article 3 of the EU framework Regulation No. 1935/2004/EC Safety requirements
  • EU Plastics Regulation No. 10/2011 (may be used as intended in all compliant EU member states).
  • Meets USP Class VI-121 C plastics criteria.
  • NSF 61 certified
  • ISO 9001:2015 certified processes
  • For further details please see the product factsheet and/or product declaration.

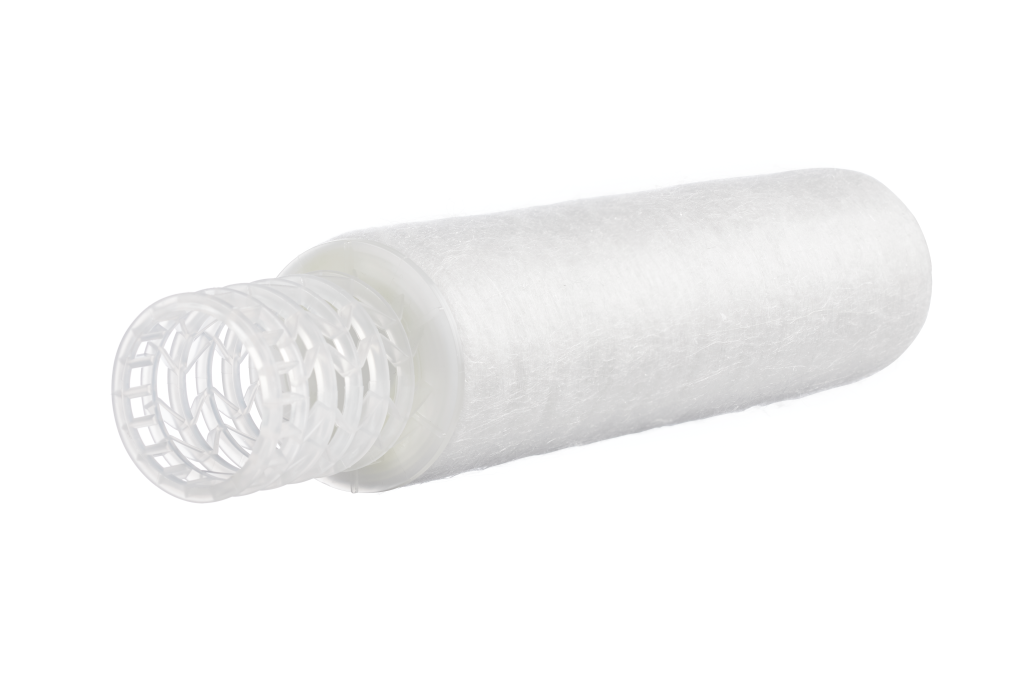

Absolute.Z - Precision grade

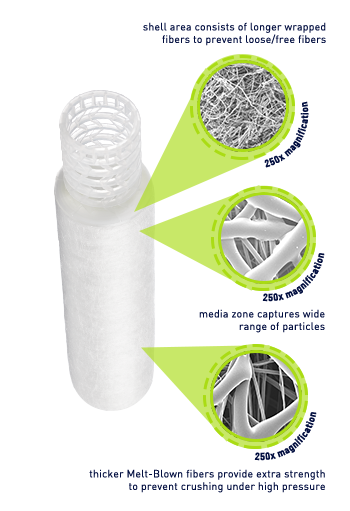

Absolute ZA Call Out

Download Absolute.Za Product Fact Sheet

The patented depth filter matrix of the Absolute.Za provides exceptional performance with 99.9% efficiency rating. Absolute.Za filters are manufactured using patented Z.Plex melt-blown filter technology and are engineered specifically for absolute filtration.

  • Absolute filtration provides high dirt-holding capacity
  • Consistent, reproducible performance and filtration quality
  • Longer life and lower pressure drops than comparable pleated filters
  • Fast rinse-up in high purity applications
  • Core is made of a high-strength polypropylene
  • 100% polypropylene melt-blown construction – non-fiber releasing media and shell
  • Filter cartridges are free of binders, anti-static agents, and adhesives; end adapters are melt-bonded
  • Made in the USA

Compliance

  • US FDA 21 CFR compliant materials
  • Article 3 of the EU framework Regulation No. 1935/2004/EC Safety requirements
  • EU Plastics Regulation No. 10/2011 (may be used as intended in all compliant EU member states).
  • Meets USP Class VI-121 C plastics criteria.
  • NSF 61 certified
  • ISO 9001:2015 certified processes
  • For further details please see the product factsheet and/or product declaration.



Specialty Filters

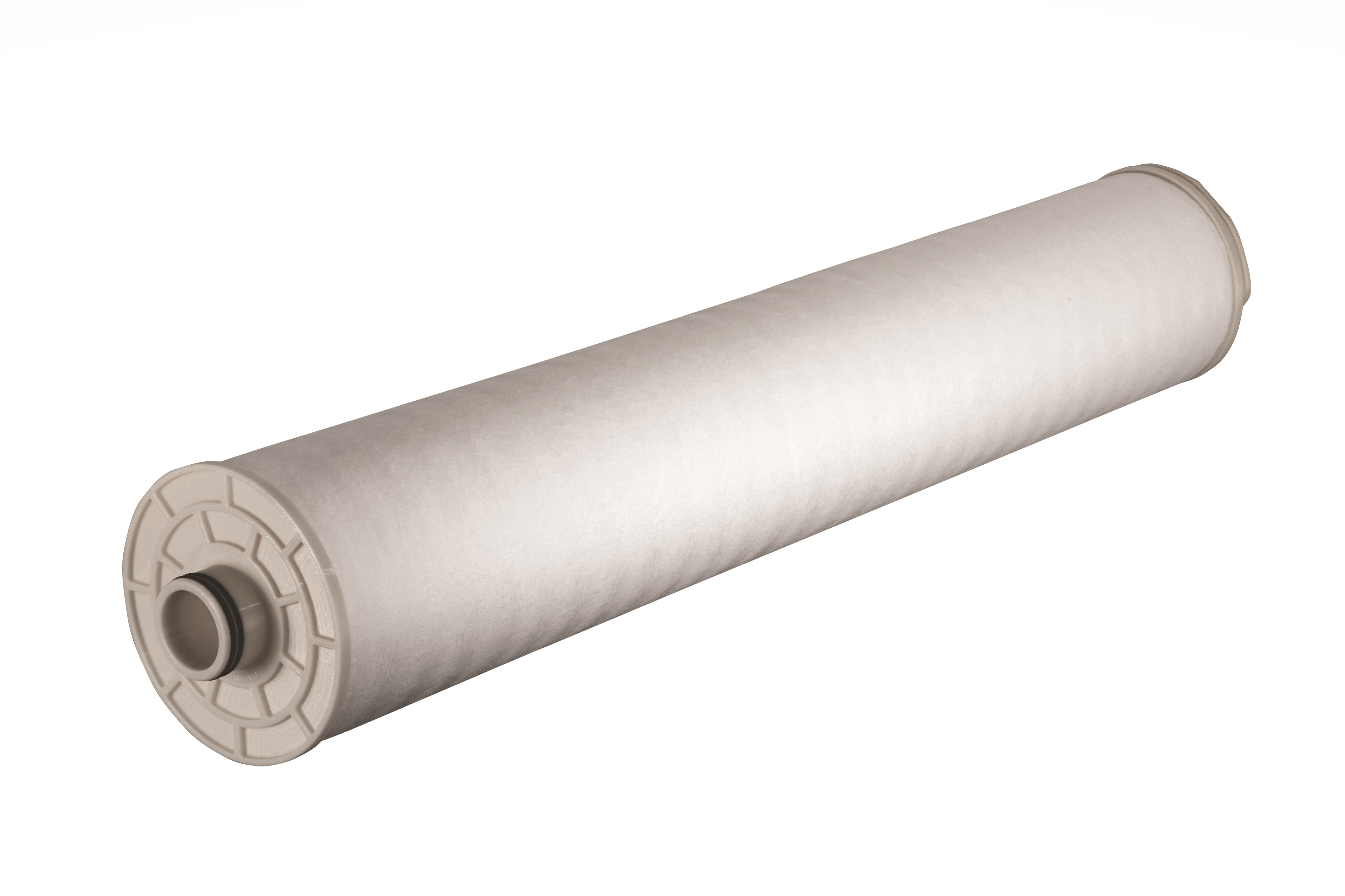

SWRO.Z - Maximum life for desalination

SWRO

Download SWRO.Z Product Fact Sheet

SWRO.Z depth cartridge filters effectively protect Veolia seawater RO membranes to ensure greater membrane efficiency and life. The SWRO.Z filter is a robust product with capabilities such as high particle retention, low pressure drop, competitive pricing, and industry-leading delivery times.

  • Engineered specifically for seawater reverse osmosis pretreatment
  • Offered in lengths from 30 to 70 inches
  • Depth filter traps particles throughout the media
  • True graded density offers longer filter lifetime
  • Very low pressure drop and flow resistance
  • Melt-bonded exterior fibers ensure no media migration
  • Made in the USA

Compliance

  • US FDA 21 CFR compliant materials
  • Article 3 of the EU framework Regulation No. 1935/2004/EC Safety requirements
  • EU Plastics Regulation No. 10/2011 (may be used as intended in all compliant EU member states).
  • Meets USP Class VI-121 C plastics criteria.
  • NSF 61 certified
  • ISO 9001:2015 certified processes
  • For further details please see the product factsheet and/or product declaration.
EDR.Z - Maximum life for EDR applications

EDR.Z

Download EDR.Z Product Fact Sheet

EDR.Z depth cartridge filters are engineered specifically for protecting Electrodialysis Reversal (EDR) membrane components. The EDR.Z Filter has minimal potential for filter media release due to unique construction with high-strength polypropylene core. EDR.Z has greater contaminant capacity compared to filters with equivalent removal efficiency. This filter’s melt-blown graded-density media traps particles throughout the entire filter depth. Additionally, the bonded interior and exterior ensure no media migration and prevent premature surface blinding. EDR.Z filters provide lower total cost of filtration operations.

  • Engineered specifically for protecting Electrodialysis Reversal (EDR) membrane components; Designed for use in Veolia EDR and most other EDR systems.
  • Minimal potential for filter media release due to unique construction with high-strength polypropylene core
  • Greater contaminant capacity compared to filters with equivalent removal efficiency
  • Melt-blown graded density media traps particles throughout the full diameter of the filter
  • Bonded interior and exterior ensure no media migration and prevent premature surface blinding
  • Provides lower total cost of filtration operations
  • Made in the USA

Compliance

  • US FDA 21 CFR compliant materials
  • Article 3 of the EU framework Regulation No. 1935/2004/EC Safety requirements
  • EU Plastics Regulation No. 10/2011 (may be used as intended in all compliant EU member states).
  • Meets USP Class VI-121 C plastics criteria.
  • NSF 61 certified
  • ISO 9001:2015 certified processes
  • For further details please see the product factsheet and/or product declaration.
Aquaplex.Z LD - General use residential

Aquaplex

Download Aquaplex LD Product Fact Sheet

Aquaplex depth cartridge filters combine innovative Z.Plex depth filter technology and quality cost-effectiveness. Aquaplex filters provide excellent filtration value in residential and light commercial applications. The engineered graded density feature of the Aquaplex LD (large diamater) filter provides exceptional dirt-holding capacity and unequaled life compared to equivalent-rated standard filters. With its three- to eight-times greater dirt-holding capacity and life, Aquaplex LD reduces change-out frequency, translating into additional more value in applications where high capacity and infrequent change-outs are desired, such as spa and pool.

  • Unique graded-density design of the extended media captures particles throughout entire filter depth
  • High dirt-holding capacity means longer life and fewer change-outs, which translates into money saved
  • Precision final filter results in consistent high-performance filtration
  • Thermally bonded microfibers for positive dirt retention
  • High-purity polypropylene media has no wetting agents, solvents, antistatic agents or binders
  • Wide chemical compatibility
  • Temperatures to 150°F (65°C)
  • Made in the USA

Compliance

  • US FDA 21 CFR compliant materials
  • Article 3 of the EU framework Regulation No. 1935/2004/EC Safety requirements
  • EU Plastics Regulation No. 10/2011 (may be used as intended in all compliant EU member states).
  • Meets USP Class VI-121 C plastics criteria.
  • NSF 61 certified and NSF 42 certified
  • ISO 9001:2015 certified processes
  • For further details please see the product factsheet and/or product declaration.



Applications

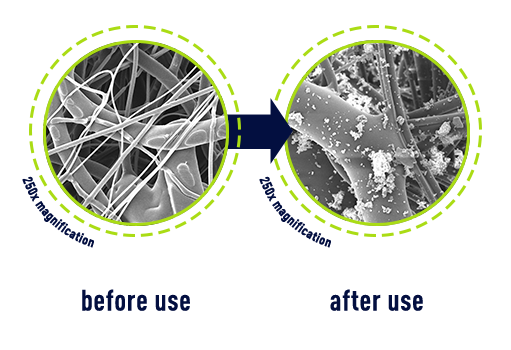

Z.Plex high void volume fiber design maximizes dirt-holding capacity

Z Plex Void



FilterPlex - General use
  • General Industrial Use
  • Municipal Water Systems Pre-Filtration
  • Surface Water Pre-Filtration
  • Ground Water Pre-Filtration
  • Potable water filtration
  • Beverage manufacturing
ROSave.Z - Maximum life
  • Reverse Osmosis Pre-Filtration for Veolia RO Systems and Universal Equipment
  • Electronics
  • Pre/Post DI
  • Active Carbon
  • Beverage ​​​​​​
WellPro.Z - Strength
  • Seawater Filtration
  • Oil and Gas
  • Well Injection
  • Produced Water Filtration
  • Water Flood and Enhanced Oil Recovery
  • Brine Filtration
ZCore - Advanced processing
  • Food and Beverage
  • Chemicals
  • Oil and Gas
  • High Viscosity Fluids Filtration
  • High-Pressure Drop Application
  • High-Temperature Applications
Absolute.Z - Precision grade
  • Hydrocarbon Processing
  • Pharmaceuticals
  • Semiconductor
  • Food and Beverage
  • Chemical Process
SWRO.Z - Specialty applications
  • Seawater Reverse Osmosis Pre-Filtration for Veolia RO Systems and Universal Equipment
EDR.Z - Specialty applications

  • EDR pre-filtration for Veolia EDR systems and universal systems

Aquaplex LD.Z LD - Specialty applications
  • Whole House Filtration
  • Spa and Pool Filtration
  • Restaurant and Food Service



FAQs

frequently asked questions

Download Complete Depth Filter FAQ Document

what is the direction of fluid flow?

The direction of fluid flow in a depth filter cartridge is from the outside to the inside. This flow direction makes use of the greater outside diameter and surface area and allows for optimum use of the media for contaminant capture.

what are the temperature limits and the differential pressure limits for depth filters?

For non-cored (no additional plastic support core) the maximum recommended temperature is 160°F. As the temperature is increased the allowable differential pressure decreases.

what are the recommended flow rates and how does fluid viscosity impact flow?

The maximum recommended flow rates depend on the contamination of the fluid being filtered and the viscosity of the fluid. For "clean water" such as municipal water feed to an RO system the maximum flow rate is 5 gpm (18.9 lpm) per ten-inch length (TIE) of filter; e.g. a 40" filter will have 4 TIEs.

As the contamination level increases, flow rates should be reduced to increase service life and more effectively utilize the depth filters’ media. For moderately contaminated fluids (10 ppm of solids) a flow rate of 2.0 gpm (7.6 lpm) /TIE is suggested.

As fluid viscosity increases above 1 cps (i.e. the viscosity of water) the pressure drop will rise proportionately. Use the flow vs. pressure drop charts on the product fact sheet and multiply the value by the fluid viscosity to obtain the pressure drop. Size the filtration system to fall below the allowable maximum pressure drop.
